Swann Surveillance Systems Plagued By Cheap Power Supply Burnouts

If you own one of the Swann brand multi-camera surveillance systems (I maintain multiple systems at multiple locations) and it has one of these type power supplies (see

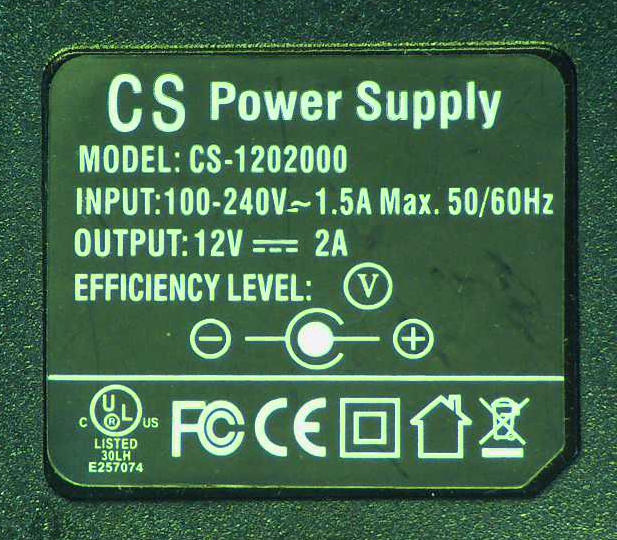

Figure 1: Label side of 12 VDC power supply commonly included with Swann surveillance/security systems.

Figure 2: Back side of 12 VDC power supply.

figure 1 and figure 2), BEWARE! These power supplies are almost 100% guaranteed to fail. To make matters worse, before they fail completely they are very likely to cause damage to one or more of your cameras (which run around $45 or so each to replace) and — worst of all — they can damage your DVR/control unit beyond feasible repair.

These power supplies do not hold up to anywhere near the load rating shown on the label.

According to the label on these power supplies (see figure 3), they should be able to hold up to a load of 2 amps at 12 Volts DC. I beg to differ. At considerably lower loads, Every single one

Figure 3: I can’t speak for the manufacturer, but I feel pretty certain the “CS” in the upper-left corner on the label is an acronym for “CHEAP S**T”

of these which I have seen on Swann surverillance systems has had the exact same failure mode and has had to be replaced (well, with the exception of only one and I replaced that one before it had a chance to cause more trouble.)

What happens to cause them to fail and possibly damage other parts of the system on their way to the trash can…

When you purchase and install one of these Swann surveillance systems, they come with two or more of these DC power supplies — all identical. The back side looks like the image in figure 2. At least it does when you first install it. After it has been operating just a little while, you can usually put your hand on the wall-wart portion of it and feel that it’s warm. Trust me, the

Figure 4: Heat inside the power supply slowly melts the plastic case, forming a bulged spot.

thing is running even hotter on the inside. The first thing that often happens is one or more cameras stop working altogether, or they start acting weird, getting grainy, discolored images, stop working at night (the infrared LED circuitry inside the camera burns out), or — in the worst-case scenario — the main control/DVR unit gets fried. By that time, if you take another look at your power supplies, you’re very likely to discover that one or more of them has developed a little “bulge” in the upper right-hand corner of the back side, as seen in figure 4. If you have one of these systems in operation and one of your power supplies is already looking like this you need to REPLACE IT IMMEDIATELY. If you don’t, it will soon get worse. That bulged area will enlarge (as seen in figure 5) and the risk of damage to your equipment rises exponentially. I’m sort of surprised I haven’t seen one literally catch on fire. I recommend you don’t purchase the identical type and model power supply because you are still going to be going down the same road. In fact, these surveillance systems are priced modestly enough (but actually have great features) that the wise thing to do is don’t install the Swann power supplies to begin with. I’m sure Swann might argue that using anything other than their power supplies voids the warranty, trust me: I’ve dealt with trying to send one of their cameras in for warranty repair/replacement and it was such a hassle that I opted to buy a replacement camera and tossed the bad one in the trash can. I figured that instead of paying the shipping and such to send the bad camera to Swann and then waiting around for it get back to me (or a replacement to come in) it would be way less expensive and frustrating to just buy a new camera on Amazon and get the free two-day shipping to help keep my cost and workload down.

What is the actual cause of the overheating, bulging, and burn-out problem?

I already have enough experience with these type power supplies that I was certain what was causing these failures and what I’d find, but I grabbed ye ol’ Dremel and cut a

Figure 6: the culprit, an electrolytic capacitor.

failed one open. As you can see in figure 6, there is an electrolytic capacitor right underneath the spot where the power supply case bulges. This capacitor is very prone to overheating and blowing out. I dare say it’s almost guaranteed to blow out. Figure 7 is a closer view of the capacitor, and you can see how the top venting/safety

Figure 7: Closer view of the notorious little troublemaking capacitor.

flaps of the capacitor have bulged upward, indicating it has overheated and failed. You can also see where there’s electrolyte on the sides of the capacitor, which has leaked out as a result of the blowout. This is a 22 uF, 400V, 105 degree capacitor according to the label on it. Given their regular habit of biting the dust, it’s apparent that either the circuit is improperly designed and there’s too much current being drawn from the capacitor, causing it to overheat, or perhaps the manufacturer of these power supplies purchased about a gazillion bad capacitors from some overseas manufacturer (OMG… is that possible… oh, yeah, all those blown HP and Compaq laptop motherboards in the last few years says it is more than just “possible.”) When this cap blows, the AC ripple shoots up (thus making its way to the cameras and/or control unit) and DC regulation becomes merely a cool idea that ain’t happening. I’ve pondered whether or not a different value capacitor might prevent this problem, but given the relatively low cost of decent DC power supplies of higher quality (plus the savings of time and effort it would take to saw every case open, get the board out, and even try to replace these stupid things) I’d rather spend $20 or so and employ another tactic which works wonders. Read on!

The antidote to this whole problem, based on my experience with these systems…

The best way to avoid this capacitor failure issue and extend the life of your Swann surveillance systems starts with a very important but very common tool (see figure 8.)

Figure 8: The only useful part of these crappy wall-warts (in my opinion) is the cord and plug that’s on the other end.

Cut the cord off of the wall-warts, strip the wires, put whatever connectors you need to on them (spade lugs, PowerPoles, whatever) and get yourself an inexpensive but decent quality 12 VDC power supply rated at about 3 to 5 amps. Seriously, they’re pretty inexpensive on Amazon and eBay — and much cheaper than replacing your cameras, control box/DVR, or the whole system. If you’re really electronically inclined and have an oscilloscope, look at the output of the power supply you intend to use and make sure its output has very, very little ripple. Even better: hook a good 3 amp or so resistive test load of some type to the power supply and watch the DC voltage and ripple with the oscilloscope to make sure the voltage doesn’t bog down and the ripple doesn’t being to get wild on you. If the power supply passes this test, finish wiring it up and run the unit and the cameras off of your good, heavier duty, more reliable power supply and hopefully you’ll get more years of use out of your surveillance system. Let me rephrase that: hopefully it will actually survive beyond the warranty period and perhaps several years after that. I put it that way because every single system I’ve installed and maintained has started having problems before the warranty period ever expired.
